Waste incineration facility

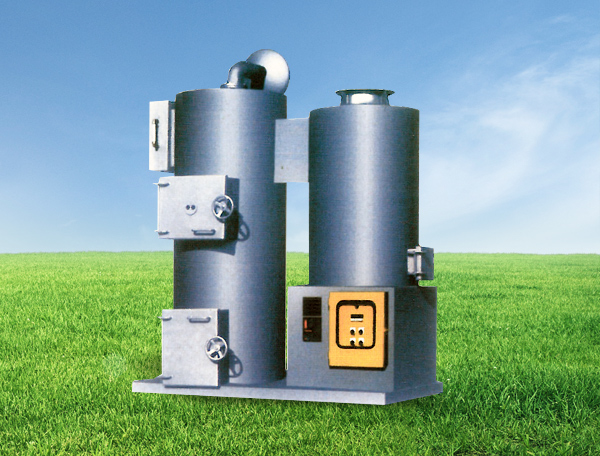

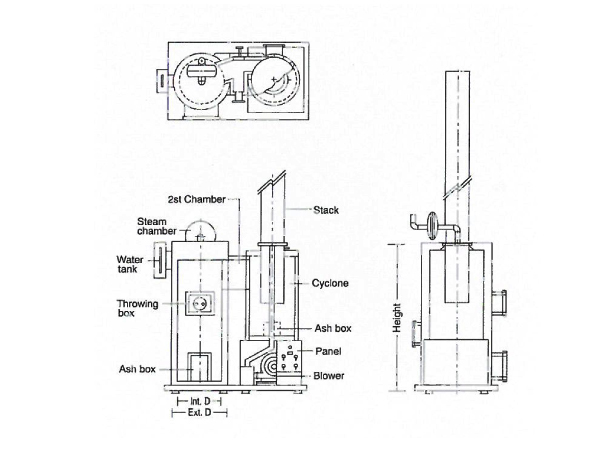

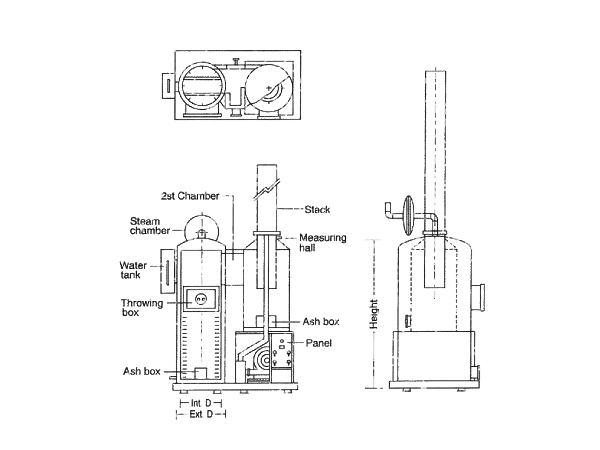

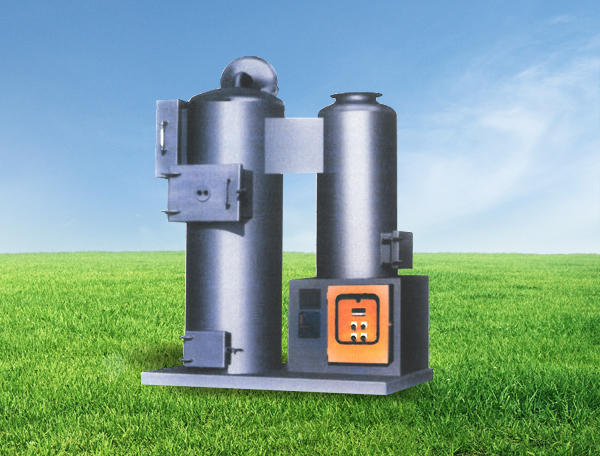

Small incinerator
Features
- It can be using for incinerate not only resin rubber, plastic but also chips and paper due to theres high heating value.
- Completly combustion on the compulsory air providing nozzle.
- Excellent ash collecting efficiency more than twice as much with compact, powerful mukti cyclone and specially stack.
- Completly combustion by the compulsory air providing with the blower.
- Avaiable for using heat it equip with heat exchanger.
Inclineratable Masterials
- Rubber, Resins, Plastics, Tires, Fibers, Wast papers and etc.
Use
: Use boiling water for shower and heating.
| Model | Capacity (Kg/Hr) |
Incinerator | Area over Fire (㎡) |
Burning Capacity (㎡) |
Stack | Equip Area (㎡) |
|
|---|---|---|---|---|---|---|---|
| W x L x H | Dropping Entrance | H(on the Ground) x Diameter | |||||
| NEO 100 | 25~35 | 720 x 610 x 2150 | 440 x 280 | 0.3 | 0.6 | 5580 x 320 | 4.7 |
| NEO 200 | 30~50 | 765 x 645 x 2285 | 490 x 390 | 0.33 | 0.65 | 5650 x 360 | 4.7 |
| Model | Capacity (Kg/Hr) |
Incinerator | Area over Fire (㎡) |
Burning Capacity (㎡) |
Stack | Equip Area (㎡) |
|
|---|---|---|---|---|---|---|---|
| W x L x H | Dropping Entrance | H(on the Ground) x Diameter | |||||
| NEO 800 | 60~80 | 970 x 770 x 2440 | 490 x 390 | 0.47 | 0.96 | 6170 x 390 | 2.8 |
| NEO 1000 | 80~100 | 1120 x 820 x 2440 | 580 x 390 | 0.66 | 1.37 | 6270 x 390 | 2.8 |
| NEO 1500 | 100~150 | 1270 x 1070 x 2745 | 640 x 440 | 0.9 | 2.14 | 6500 x 390 | 4.13 |
| NEO 2000 | 150~200 | 1510 x 1250 x 2600 | 640 x 540 | 1.23 | 3.12 | 7980 x 450 | 4.3 |

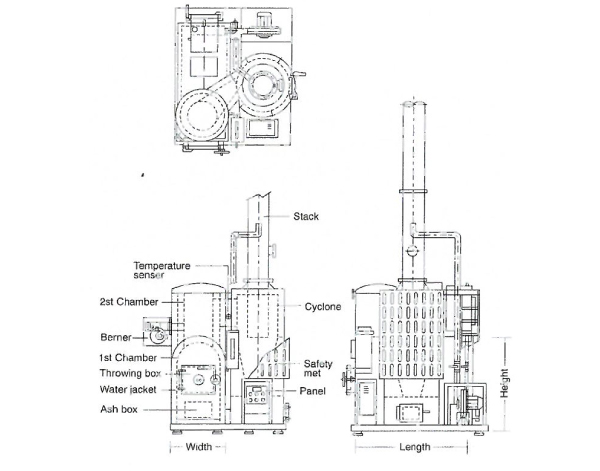

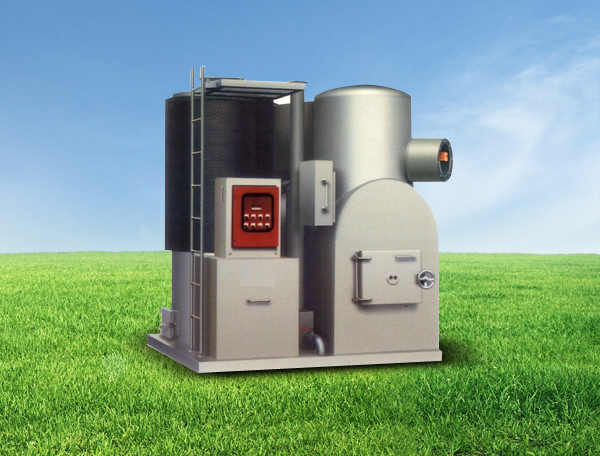

Features
- NEO PZW Series are formedwith the air control esploseion system, it can be available for a lot of waste at once and so easily work-ability and high explosion eficiency.
- Excellent heat insulation even if they have been used for a long time cause of they made of refractory castable.
- High explosion efficiensy by high pressure air has been compulsory provide in the center of incinerator, also unexplosived gas can be completly combustioned with high temperature.
- Highly explosioned efficienct with in unexplosion hole, and maximum value of ash collecting by multi cyclone.
Incineratable Masterials
: Rubber, Resin, Plastics, Tires, Fibers, Wast papers and etc.
| Model | Capacity (Kg/Hr) |
Incinerator | Area over Fire (㎡) |
Burning Capacity (㎡) |
Cyclone (Ø x H) |
Stack | Equip. Area (㎡) | |
|---|---|---|---|---|---|---|---|---|
| 1st Chamber (W x L x H) |
2st Chamber ( Ø x H) |
H(on the Ground) x Diameter | ||||||
| PZ 100 | 40~50 | 820 x 1624 x 1400 | 820 x 930 | 0.8 | 1.25 | 820 x 2230 | 5580 x 320 | 4.7 |
| PZ 200 | 60~70 | 900 x 1905 x 1500 | 900 x 900 | 0.95 | 1.75 | 920 x 2300 | 5650 x 360 | 4.7 |
| PZ 300 | 80~100 | 1120 x 1950 x 1640 | 1000 x 1000 | 1.02 | 2.38 | 1060 x 2540 | 5890 x 430 | 5.42 |
| PZ 400 | 120~150 | 1200 x 2400 x 1650 | 1000 x 1000 | 1.45 | 3.15 | 1060 x 2540 | 7400 x 430 | 6.38 |

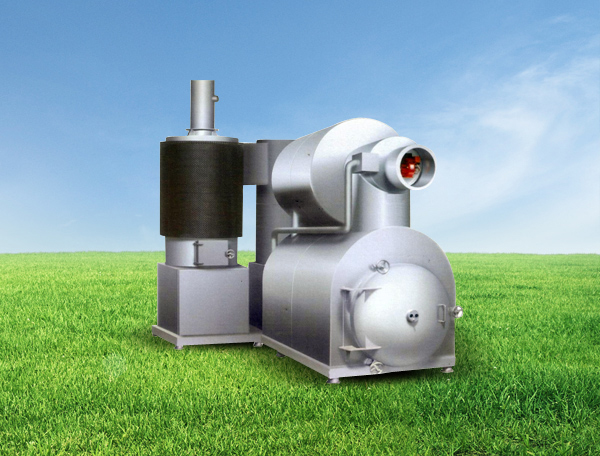

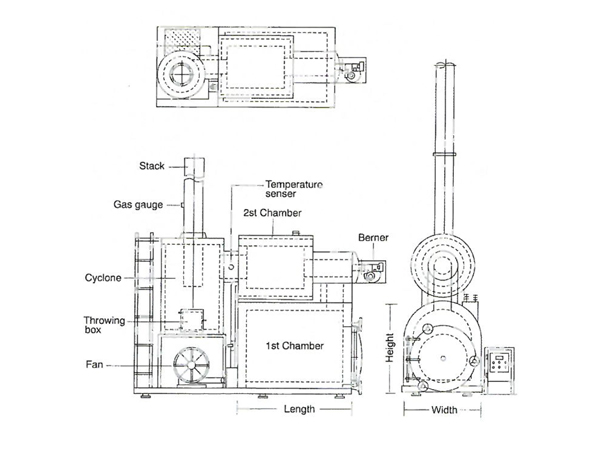

Features
- Put all organic wastes as a bundle intake into the dry burner and fired it up, and to blow a low temperature with the dry fan for and active carbonization to be occur the carbon dry gas. And the carbon dry gas has been perfectly in 2nd flaming chamber on the air the dust ashed happened in this case are turned around the circular cone from the center with its down and up again to drop into the dust collector or ventilator off.
Incineratable Masterials
- Rubber, Resin, Plastics, Tires, Fibers, Wast papers and etc. Used papers, wast timbers, refusing textures, useless leathers, non-eatable foods, and useless synthetic(PP, PE, PS), etc.
| Model | Capacity (Kg/Hr) |
Incinerator | Area over Fire (㎡) |
Burning Capacity (㎡) |
Intake Width | Total height (m) |
Power (HP) |
Equip Area (㎡) |
|
|---|---|---|---|---|---|---|---|---|---|
| 1st Chamber (W x L x H) |
2st Chamber ( Ø x H) |
||||||||
| JDT 100 | 40~50 | 1320 x 2040 x 1410 | 1270 x 1220 | 2.27 | 2.27 | 850 | 2860 | 3 | 4.28 |
| JDT 200 | 60~80 | 1520 x 2300 x 1550 | 1320 x 1530 | 3.02 | 4.09 | 850 | 2970 | 5 | 5.54 |
| JDT 300 | 90~100 | 1860 x 2880 x 1850 | 1420 x 2080 | 4.62 | 7.34 | 930 | 3520 | 7.5 | 8.17 |
| JDT 400 | 150~160 | 2140 x 3140 x 2080 | 1520 x 2250 | 5.90 | 10.92 | 1030 | 3850 | 15 | 10.21 |
* The above specifications will be chainged in depend on the basis of inspection.
